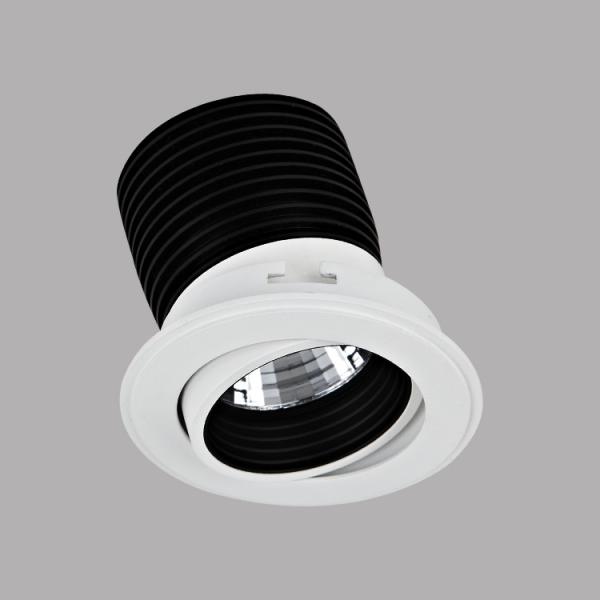

High power 2015 new type 10W Samsung 5630 SMD AC100-20V Led downlight with Meanwell driver

Ask Lasest Price
Brand Name :	Jinsun
Certification :	SAA CE,ROHs ,UL ,TUV,SGS
Model Number :	D1003A
Delivery Time :	10-20days
Payment Terms :	T/T(30% in advance), Western Union
Supply Ability :	40,0000 Pcs each month

Add to Cart

Product Details
Company Profile

High power 2015 new type 10W Samsung 5630 SMD AC100-20V Led downlight with Meanwell driver

Our Product Feature.

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan50000

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

	Item No.:	D1003A
	Power:	10W
	Beam angle:	15°/25°/38°/60°
	Led light source:	Citizen cob/Bridgelux cob
	Luminous Flux:	700LM
	Housing:	6063 Aluminum
	CCT:	3000K/4000K/5000K
	CRI:	≥82
	PF:	≥0.90
	IP Rating:	IP40
	Lifespan:	50000Hours
	Warranty:	3years
	Non-dimmable and Dimmable for option,0/1~10V,DALI
	Patented Heatsink No.:ZL201020180034.0

Wattage	Cutout Size/mm	Height/mm	Surface Size/mm	Beam Angle
4W	￠40	45	￠50	15 °/24°/36°
4W	￠53	52	￠62	15 °/24°/36°
7W	￠53	70	￠62	20°/40°/60°
7W	￠65	65	￠75	24°/60°
10W	￠75	80	￠85	15°/25°/38°/60°
15W	￠90	100	￠108	15°/25°/38°/60°
20W	￠100	100	￠118	24°/36°/60°
30W	￠120	115	￠138	15°/24°/40°
40W	￠160	110	￠180	15°/24°/40°
50W	￠160	120	￠180	15°/24°/40°
60W	￠160	140	￠180	15°/24°/40°
40W	￠205	110	￠230	15°/24°/40°
50W	￠205	120	￠230	15°/24°/40°
60W	￠205	140	￠230	15°/24°/40°

This model is available for 7W,10W,15W,20W,30W,40W,50W,60W.

The Heatsink we instented on honeycomb radiator structure

structure

13 year experience in LED COB downlight engineer design our product.

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led

manufacturer for strategic cooperation,become a very cost-effective and competitive commercial lighting brand

* Providing professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as

cooperation.

The Test Report:Including Color Temperature ntegreting sphere,spectruem

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,

luxury malls,shopping mall and other commercial establishment lighting.

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,

SAA certificate

Our Company View.

Our Company History

With many years experience in LED light , we believe we will not let you down.

Our Customer

Trade Terms.

1. Payment: T/T, Western Union.

2. Samples can be available within 6-8 working days

3. Shipping freight is quoted under your requests

4. Shipping port: Zhongshan/Shenzhen/Guangzhou, China mainland5. Di5. The discount are offered based on order quantities

As a very active manufactures, we develop new designs nearly every month,If you have interest in it, it’s my pleasure to offer news to you regular.

Wish establish businee relationship with you.
