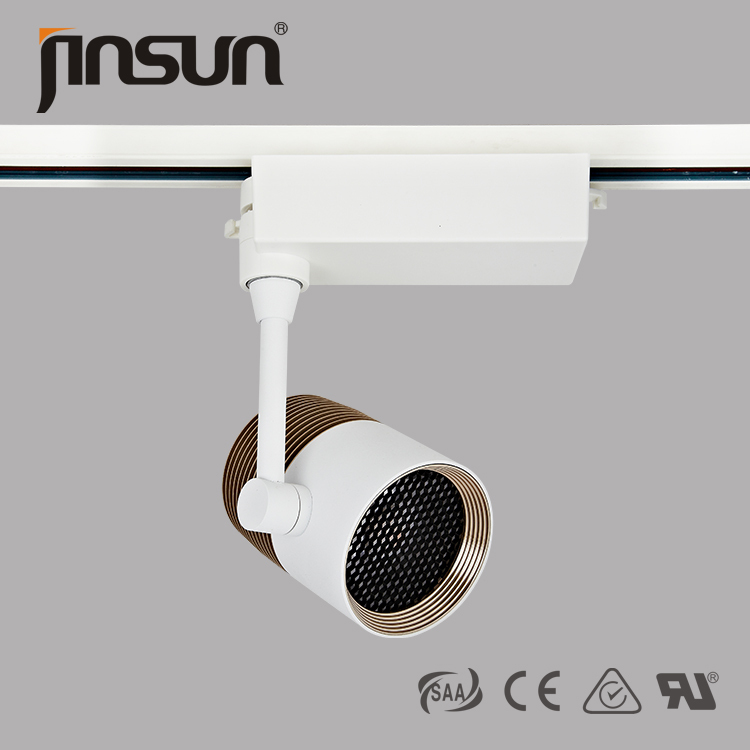

20W High Brightness CREE Chip Round Shape Gold Color Of LED Track Light

Ask Lasest Price

Brand Name :

Jinsun

Certification :

CE,RoHs,UL,SAA,TUV

Model Number :

T8120

Delivery Time :

10-20days

Payment Terms :

T/T(30% in advance), Western Union

Supply Ability :

40,0000 Pcs each month

20W High Brightness CREE Chip Round Shape Gold Color Of LED Track Light

Our Product Feature.

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan50000

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

	Item No.:	T8120
	Power:	20W
	Beam angle:	20º/30º/40º
	Led light source:	Cree cob/Citizen cob
	Luminous Flux:	1600LM
	Housing:	6063 Aluminum
	CCT:	3000K/4000K/5000K
	CRI:	≥82
	PF:	≥0.90
	IP Rating:	IP40
	Lifespan:	50000Hours
	Warranty:	3years
	Non-dimmable and Dimmable for option,0/1~10V,DALI
	Global Patented Heatsink No.:ZL201310030769.3

Wattage	Cutout Size/mm	Dimension/mm	Beam Angle
12W	￠65	￠17515083	20º/30º/40º
20W	￠65	￠175150105	20º/30º/40º
25W	￠85	￠220170108	12º/24º/36º
35W	￠85	￠220170128	12º/24º/36º
45W	￠100	245190146	12º/24º/36º

Quick Details

Light Source: LED
Item Type: Track Lights
LED Light Source: CREE
Warranty(Years): 3
Input Voltage(V): AC100-240V
Lamp Power(W): 25
Lamp Luminous Flux(lm): 2000
Lamp Luminous Efficiency(lm/w): 80
CRI (Ra>): 80
Color Temperature(CCT): 3000K/4000K/5000K
Working Temperature(℃): -20 - 65
Working Lifetime(Hour): 50000
Certification: CE, RoHS
Place of Origin: Guangdong, China (Mainland)
Brand Name: JINSUN
Model Number: T8125
diameter: 85mm
surface size: 220mm*170mm*108mm
beam angle: 12/24/36

20W High Brightness CREE Chip Round Shape Gold Color Of LED Track Light

Products Features:

1. Exquisite craft and appearance, simple structure and easy installation, safe and solid lighting fixture;

2. Precise optical design with unique process makes light more uniform and its efficiency reach 85%;

3. Particular structure heat sink which made of grade 6063 aluminum, imported COB lighting source ,

enable average lifespan of the lamp reach 50000 hours;

4. Superior Aluminum housing with oxidized or painting finished;

5.Healthy and eco-friendly lighting, No IR or UR hazardous.

The Heatsink we instented on honeycomb radiator structure

structure

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led

manufacturer for strategic cooperation,become a very cost-effective and competitive commercial lighting brand

* Providing professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as

cooperation.

The Test Report:Including Color Temperature ntegreting sphere,spectruem

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,

luxury malls,shopping mall and other commercial establishment lighting.

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,

SAA certificate

Our Company View.

Our Company History

With many years experience in LED light , we believe we will not let you down.

Our Customer

Trade Terms.

1. Payment: T/T, Western Union.

2. Samples can be available within 6-8 working days

3. Shipping freight is quoted under your requests

4. Shipping port: Zhongshan/Shenzhen/Guangzhou, China mainland5. Di5. The discount are offered based on order quantities

As a very active manufactures, we develop new designs nearly every month,If you have interest in it, it’s my pleasure to offer news to you regular.

Wish establish businee relationship with you.
